Products Description

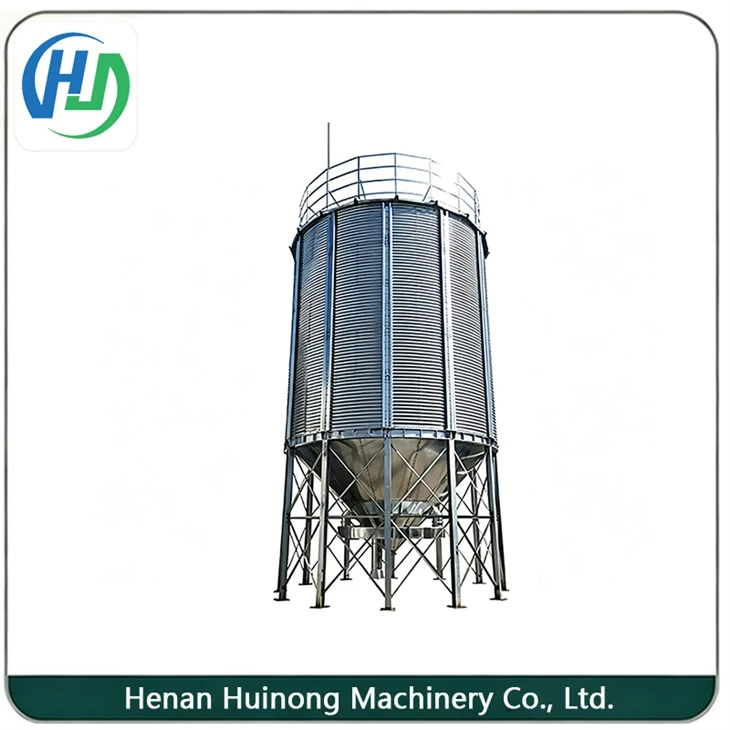

The small-scale steel grain silo is a popular bolted, modular storage solution designed primarily for small to medium-sized grain storage applications. Compared to large-scale industrial silos, this model features a smaller footprint, flexible layout, and a lower initial investment, making it a preferred choice for individual farmers, livestock operations, small feed mills, and local grain procurement centers.
All silo panels are prefabricated in the factory, allowing for on-site assembly using only bolts-eliminating the need for complex welding. A hot-dip galvanized protective coating provides resistance against rain, moisture, and corrosion, ensuring suitability for a wide range of climatic conditions. The sealed structure of the silo effectively keeps out birds, rodents, and pests, thereby reducing losses caused by mold and insect infestation
Technical Specifications
| Model | Silo Top Angle | Bottom Cone Angle | Silo Diameter | Total Silo Height | Silo Shell Height | Silo Volume | Maximum Silo Capacity |
| 100T | 25° | 45° | 4.5m | 12.53m | 7.91m | 150m³ | 110tons |
| 300T | 25° | 45° | 6.417m | 17.33m | 11.27m | 418m³ | 310tons |
| 500T | 25° | 45° | 8.25m | 18.87m | 11.27m | 718m³ | 535tons |
Key Features
✅ Hot-dip galvanized corrugated steel sheets with a 275 g/m² zinc coating; service life of 20–25 years
✅ Modular bolted design for easy installation, disassembly, and relocation
✅ Standard 45° conical hopper bottom ensures smooth discharge with minimal residue, preventing bridging or clogging
✅ Comprehensive safety accessories: roof manhole, protective railings, maintenance ladder, and access door
✅ Optional upgrades: ventilation systems, temperature and humidity monitoring, level sensors, and screw conveyor systems
✅ Optimized structural design for wind and seismic resistance; requires minimal concrete foundation
✅ Excellent sealing properties-moisture-proof, mold-resistant, and protected against rodents and insects
✅ Customizable capacity (100–500 tons); diameter and height can be adjusted to suit your site requirements
Application Scenarios
Suitable for storing corn, wheat, rice, soybeans, barley, sorghum, seeds, and livestock or poultry feed.
Applicable sites: Family farms, livestock and poultry farms, small-scale feed mills, grain procurement stations, and as a component of small-scale grain drying systems.
Why choose our small-scale steel grain silos?
1. Lower initial investment: Compared to conventional concrete/masonry grain storage facilities, these steel silos significantly reduce foundation and construction costs.
2. Reduced grain loss: Excellent sealing and ventilation control stabilize grain moisture levels, minimizing the risk of mold and spoilage.
3. Labor savings: Conical-bottom designs allow for gravity-based, self-discharging, which enhances the efficiency of loading and unloading.

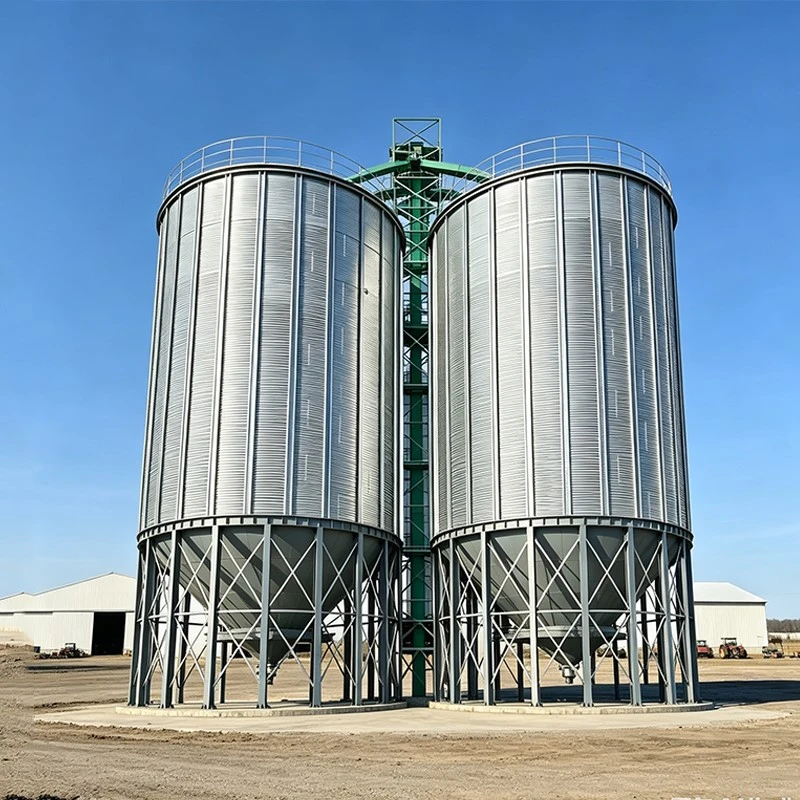

4. Scalability: Additional silos can be easily added as your grain storage requirements grow.
5. Comprehensive global support: We provide technical drawings, installation manuals, and online technical guidance; on-site installation services by engineers are also available internationally.
FAQ
Q: Who are we?
A: We are a source manufacturer with our own production workshop and R&D team.
Q: Does the equipment support customization?
A: OEM/ODM customization is available for dimensions, heat sources, control systems, production capacity and other aspects.
Q: Why Choose Us?
A: 1).We are Manufacturer of Grain Processing Machinery. 2).100% QC inspection Before Shipment. 3).Our products have been sold to many countries and regions, including Europe, America, Southeast Asia, Africa, and other countries, and have gained a good reputation.
Q: How long is the delivery cycle?
A: Peak Season Lead Time: 1-3 month Off Season Lead Time: one month
Q: Can we visit the factory?
A: Factory inspections on site are welcome, and reception can be arranged with an advance appointment.
