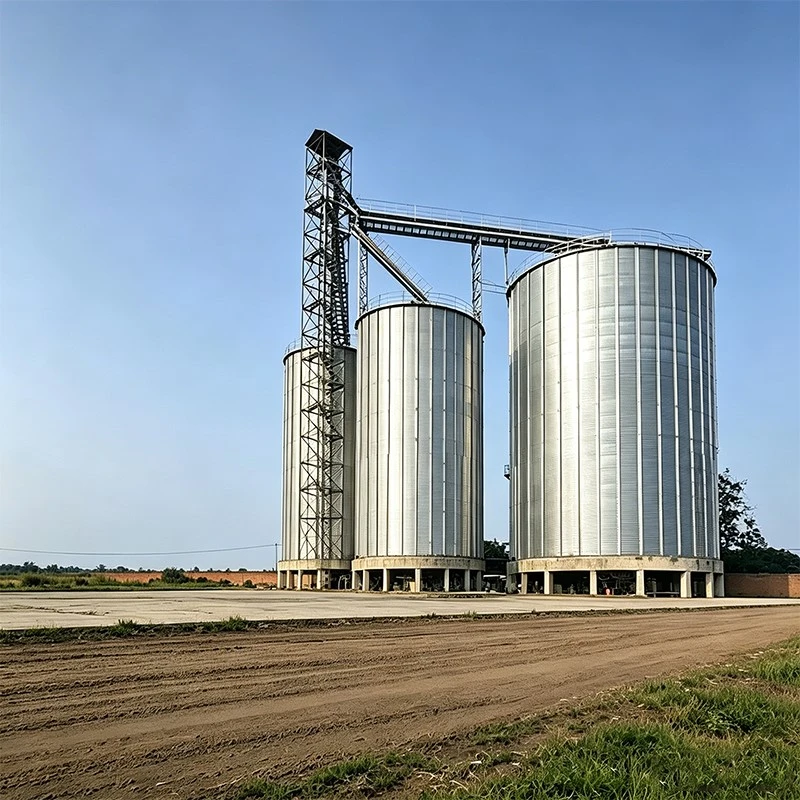

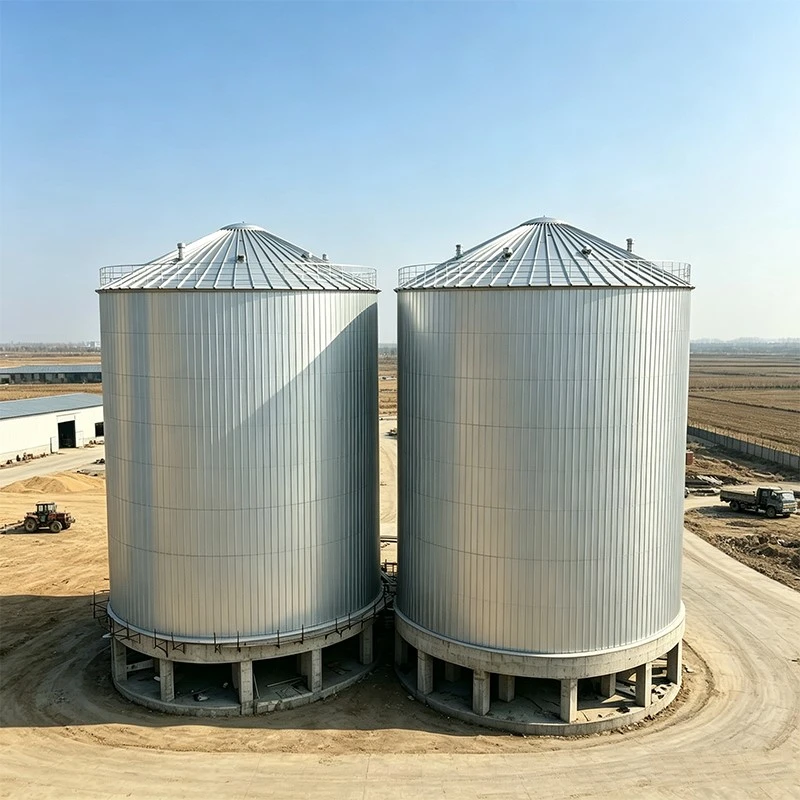

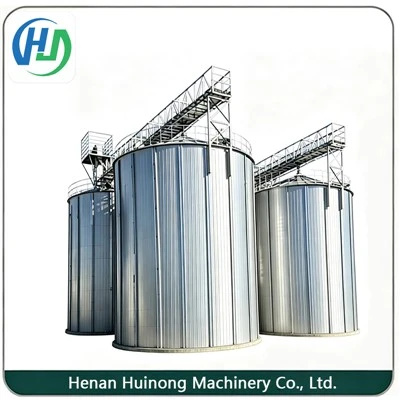

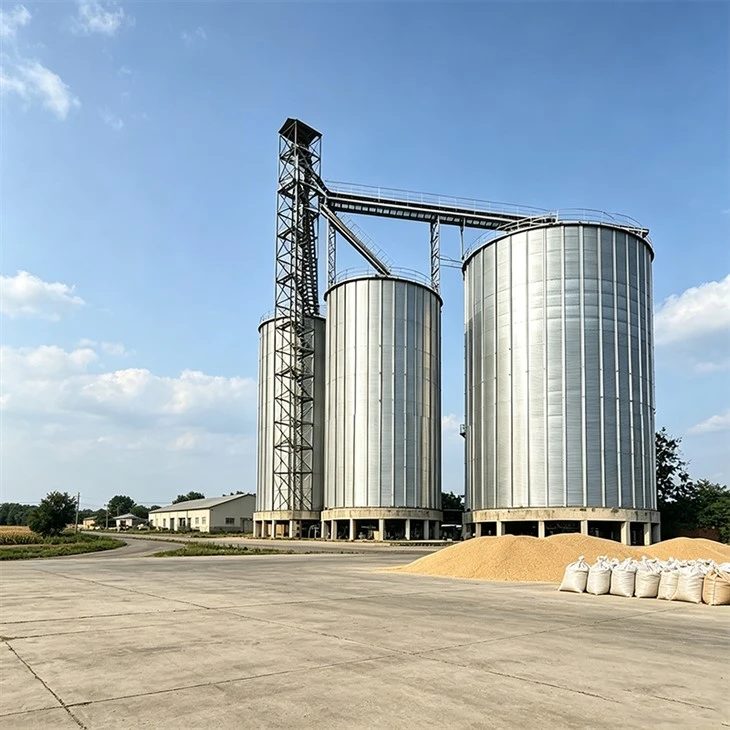

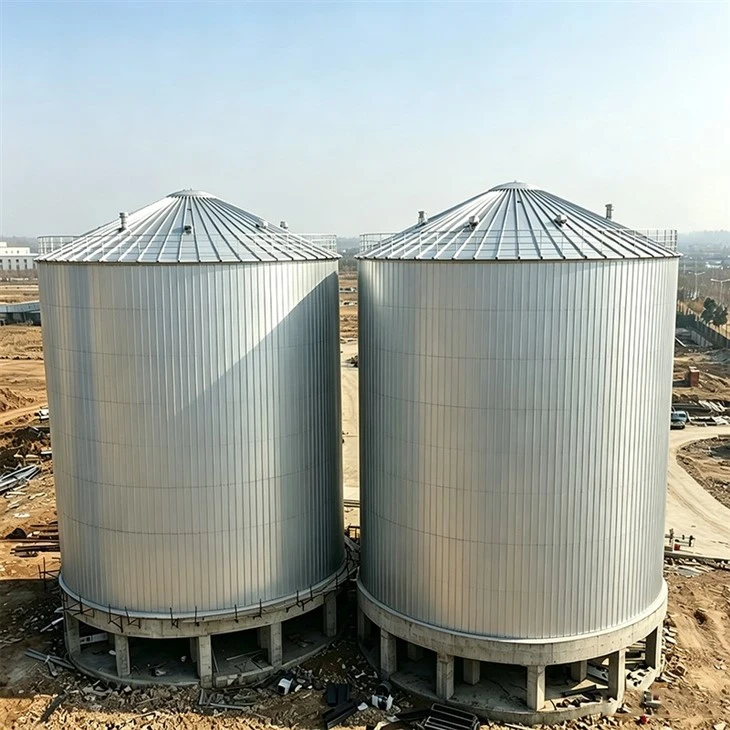

Flat Bottom Grain Steel Silo

Flat-Bottom Steel Grain Silos

Flat-bottom steel grain silos are professional, high-capacity bulk storage systems designed for grain trading enterprises and large-scale agricultural projects. Unlike conical-bottom silos, this model utilizes a reinforced concrete flat foundation, which maximizes internal storage space and reduces the storage cost per ton of grain. The silo structure consists of galvanized corrugated steel panels assembled with bolts and reinforced with stiffeners, enabling it to withstand the immense lateral pressure exerted by the grain while ensuring high structural rigidity and stability.
These silos are primarily intended for the long-term bulk storage of grain. They are typically equipped with automatic sweep augers to ensure complete discharge. The system can be integrated with various grain preservation components-such as aeration ducts, multi-point temperature monitoring systems, fumigation ports, and level sensors-and connected to bucket elevators, belt conveyors, and cleaning screens to form an automated grain receiving, storage, and dispatching line. They are widely used in grain procurement stations, processing plants, port-based grain logistics hubs, and large-scale farms. Silo diameter and height can be customized based on site layout and storage capacity requirements, with full turnkey solutions available.

Overview
Flat-bottom steel grain silos are the primary storage solution for medium-to-large-scale grain projects, widely utilized in commercial grain depots, grain and oil processing plants, port-based grain transit facilities, and large-scale agricultural cooperatives. Unlike hopper-bottom designs, the flat-bottom structure eliminates the space-consuming conical hopper, resulting in exceptionally high space utilization. This makes it a highly cost-effective option-in terms of storage cost per unit-for scenarios requiring the long-term storage of thousands of tons of grain.
The silo wall panels, roof panels, and vertical stiffeners are all prefabricated in the factory and assembled on-site using high-strength bolts. A dense arrangement of stiffeners effectively distributes the lateral pressure exerted by the grain. The sealed structure of the silo supports circulating ventilation and closed-loop fumigation, which helps inhibit mold growth and pest infestations, ensuring stable grain conditions during long-term storage. Furthermore, when paired with grain-sweeping equipment, the silo can be completely emptied, significantly reducing the need for manual labor during clean-out operations.

Key Features
✅ 275g hot-dip galvanized corrugated steel sheets with vertical stiffeners, specifically engineered to withstand the immense lateral pressure exerted by bulk grain.
✅ Reinforced concrete flat-bottom foundation eliminates "dead zones" (common in conical-bottom silos), achieving over 95% space utilization and a lower cost per ton of storage.
✅ Modular bolted assembly with standardized components, facilitating future expansion of the silo complex.
✅ Compatible with automatic grain sweep augers to ensure complete discharge of stored grain.
✅ Integrated floor-level ventilation duct network ensures uniform airflow, preventing localized heat buildup and moisture accumulation within the grain mass.
✅ Comprehensive grain preservation suite: multi-point temperature sensing cables, level indicators, fumigation ports, and roof pressure-relief vents.
✅ Equipped with maintenance platforms, walkways with guardrails, external ladders, side access doors, and roof manholes for convenient routine inspection.
✅ Designed in compliance with local wind, snow, and seismic load standards, ensuring suitability for long-term outdoor use.
✅ Supports full-process automation integration, including bucket elevators, belt conveyors, pre-cleaning screens, and centralized PLC control systems.
✅ Customizable capacity: 200 to 20,000 tons, with diameter and height tailored to specific requirements-perfectly suited for complete grain drying and storage systems.

Application Scenarios
Suitable for the long-term bulk storage of corn, wheat, rice, soybeans, barley, sorghum, and oilseeds.
Applicable settings include commercial grain silos, grain trading and distribution enterprises, flour mills, rice mills, port-based grain logistics hubs, large-scale modern farms, and grain drying production lines.

Standard Technical Specifications
Material: 275g/m² hot-dip galvanized corrugated steel sheets
Silo Type: Flat-bottom grain steel silo
Foundation: Reinforced concrete flat-bottom foundation
Capacity: Customizable from 100 to 20,000 tons
Assembly Method: High-strength bolted connections (no on-site welding required for silo walls)
Components: Silo body, stiffeners, roof, walkways and guardrails, access ladders, side access doors, roof manholes, and floor-based aeration/ventilation duct systems
Optional Accessories: Grain sweep augers, bucket elevators, belt conveyors, grain temperature monitoring systems, high/low-level sensors, and central control cabinets

Henan Huinong Machinery Co., Ltd. is one of the most reliable manufacturers and suppliers of flat bottom grain steel silo in China. With abundant experience, we warmly welcome you to buy durable flat bottom grain steel silo at low price from our factory. Customized orders are welcome.
