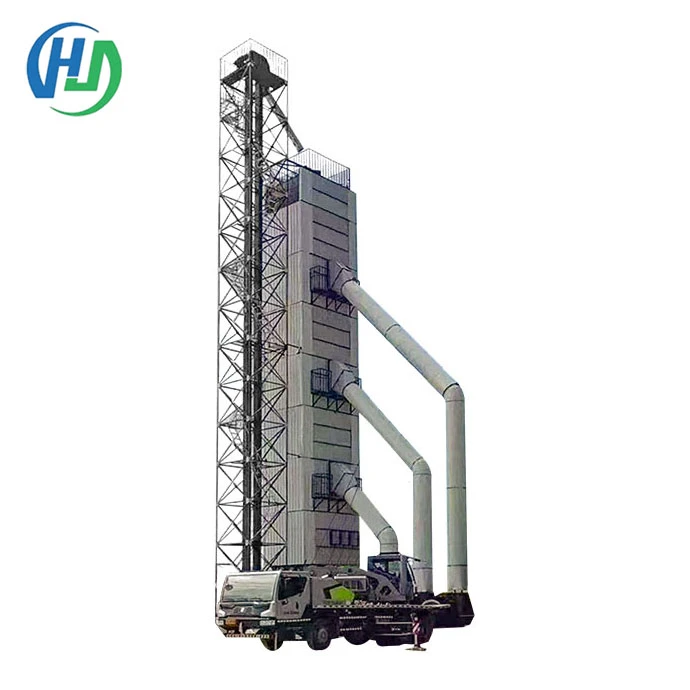

Henan Huinong Machinery Co., Ltd. is one of the most reliable manufacturers and suppliers of 300 ton grain drying tower in China. With abundant experience, we warmly welcome you to buy durable 300 ton grain drying tower at low price from our factory. Customized orders are welcome.
Product Specifications
|
Serial Number |
Project |
Unit |
Design Value |
|
1 |
Model Name |
/ |
5HL-300A Grain Drying Machine |
|
2 |
Structural Type (Continuous/Batch Cycle/Batch Static) |
/ |
continuous type |
|
3 |
Drying method (direct heating/indirect heating) |
/ |
indirect heating |
|
4 |
Drying process (co flow/cross flow/mixed flow/counter flow) |
/ |
Forward and backward flow |
|
5 |
Dimensions of the dryer body (length x width x height) |
mm |
3150×3650×28500 |
|
6 |
processing capacity |
t/d |
300 |
|
7 |
Precipitation amplitude,% |
/ |
Wheatgrains3%,wheat>3.5%,corn>5%,corn > 5% |
|
8 |
Batch processing volume |
t |
/ |
|
9 |
Precipitation rate |
%/h |
/ |
|
10 |
Number of drying sections |
pcs |
1 |
|
11 |
Total height of the Su section |
pcs |
1 |
|
12 |
Total height of the drying section |
mm |
14400 |
|
13 |
Total height of the Su section |
mm |
8000 |
|
14 |
Cooling section height |
mm |
3200 |
|
15 |
effective volume |
m³ |
178.6 |
|
16 |
Hot air temperature range |
℃ |
45~160 |
|
17 |
Number of hot air fans |
pcs |
3 |
|
18 |
Air supply type of hot air blower (positive pressure/negative pressure) |
/ |
positive pressure |
|
19 |
Model name of No.1 hot air blower |
/ |
4-72-9C centrifugal fan |
|
20 |
Motor power of No.1 hot air blower |
kw |
45 |
|
21 |
Model name of No.2 hot air blower |
/ |
4-72-8C centrifugal fan |
|
22 |
Motor power of No.2 hot air blower |
kw |
37 |
|
23 |
Model name of No.3 hot air blower |
/ |
4-72-8C centrifugal fan |
|
24 |
Motor power of No.3 hot air blower |
kw |
37 |
|
25 |
Number of cooling fans |
pcs |
1 |
|
26 |
Cooling fan model name |
/ |
4-72-6C centrifugal fan |
|
27 |
Cooling fan motor power |
kw |
11 |
|
28 |
Total power of dryer motor |
kw |
139.7 |
|
29 |
Type of heat source (coal/oil/gas/electricity consumption) |
/ |
fuel |
|
30 |
Equipment model name providing heat source |
/ |
YL-YL-360 Fully Automatic Combustion Machine |
|
31 |
Heat source thermal power (output heat) |
kcal/h |
3600000 |
|
32 |
Improve equipment productivity |
t/h |
/ |
Product Features and Applications
Optimized Structural Design for More Scientific Drying
The 300-ton grain drying tower features a scientifically optimized angular box arrangement and employs advanced counter-current drying technology to effectively prevent damage caused by direct contact between frozen grain and high temperatures, thereby ensuring grain quality. A counter-current mixing drying section is located at the bottom of the unit to rapidly reduce grain moisture content. All air temperature zones are equipped with a gentle drying structure, preventing issues such as grain splitting and cracking at the source, thereby further enhancing drying quality.
Precise Segmented Drying to Meet Storage Requirements
The central drying section employs a cross-layout design for the angular boxes, ensuring more uniform heat distribution and more stable drying results. An independent cooling section has been added at the bottom. While completing moisture reduction and drying, it simultaneously lowers grain temperature, ensuring that the dried grain can be safely stored immediately, eliminating the need for an additional cooling step.
Innovative Process Upgrades: More Efficient and Energy-Saving
Traditional drying towers often use a central air-inlet mixed-flow mode, which suffers from long drying cycles and high operating costs. This independently developed new counter-current drying tower abandons the traditional central air intake structure, eliminating unnecessary processes and significantly increasing drying speed. It saves 0.5–1 fen per jin of grain in drying costs, delivering significant long-term economic benefits.
Flexible Adaptability to Scenarios, More Convenient Operation
This machine supports flexible, batch-style drying, eliminating the need to fill the tower completely. It can operate normally regardless of grain volume-whether large or small-accommodating various drying requirements. In contrast to traditional center-airflow drying towers, which must be fully loaded to start, this machine offers greater flexibility and is suitable for a wider range of applications.
Grains Suitable for Drying: Rice, wheat, corn, soybeans, black rice, buckwheat, etc.
Our Services
FAQ
Q: Who are we?
A: We are a source manufacturer with our own production workshop and R&D team.
Q: Does the equipment support customization?
A: OEM/ODM customization is available for dimensions, heat sources, control systems, production capacity and other aspects.
Q: Why Choose Us?
A: 1).We are Manufacturer of Grain Processing Machinery.
2).100% QC inspection Before Shipment.
3).Our products have been sold to many countries and regions, including Europe, America, Southeast Asia, Africa, and other countries, and have gained a good reputation.
Q: How long is the delivery cycle?
A: Peak Season Lead Time: 1-3 month
Off Season Lead Time: one month
Q: Can we visit the factory?
A: Factory inspections on site are welcome, and reception can be arranged with an advance appointment.
