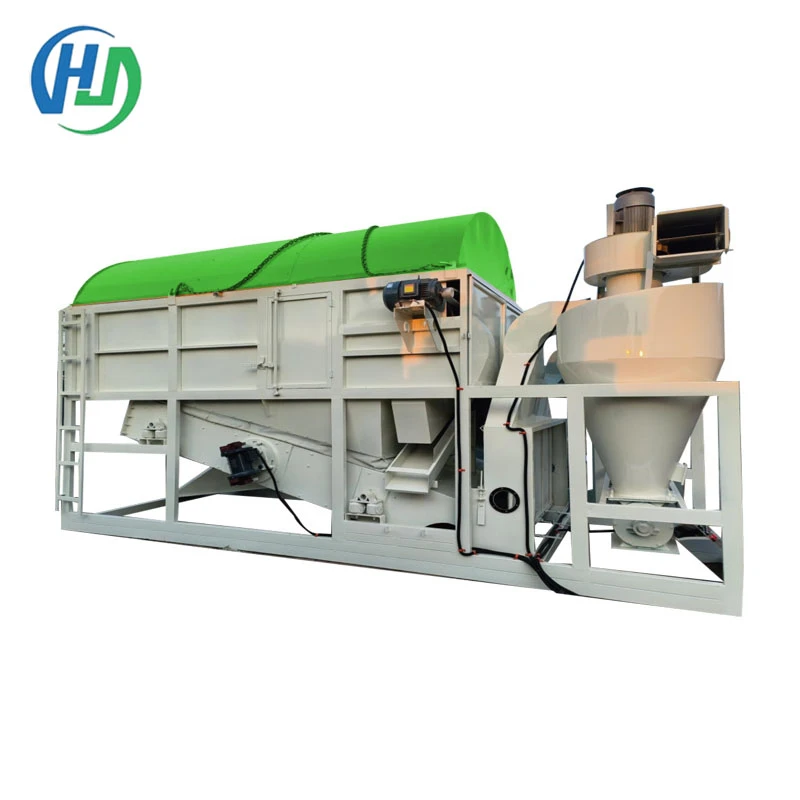

Henan Huinong Machinery Co., Ltd. is one of the most reliable manufacturers and suppliers of grain cleaning machine in China. With abundant experience, we warmly welcome you to buy durable grain cleaning machine at low price from our factory. Customized orders are welcome.
Product Specifications
|
Item |
Unit |
Design Value |
||
|
5XF-15 Grain Cleaner |
5XF-25 Grain Cleaner |
5XF-50 Grain Cleaner |
||
|
Model Name |
/ |
5XF-15 Grain Cleaner |
5XF-25 Grain Cleaner |
5XF-50 Grain Cleaner |
|
Structure Type |
/ |
Air-screen type |
Air-screen type |
Compound type |
|
Overall Dimensions of Machine Body (L × W × H) |
mm |
5300×2200×3150 |
5400×2100×3350 |
5800×2150×3250 |
|
Cleaning Mode |
/ |
Air-screen type |
Air-screen type |
Air separation + screening |
|
Feeding Mode |
/ |
Mechanical feeding |
Mechanical feeding |
Mechanical feeding |
|
Pure Working Hour Productivity |
t/h |
≥15 |
≥25 |
≥50 |
|
Vibration Motor Model Specification |
/ |
/ |
/ |
YE3-80M2-4 |
|
Vibration Motor Quantity |
pcs |
/ |
/ |
2 |
|
Vibration Motor Power |
kW |
/ |
/ |
0.75 |
|
Fan Motor Model Specification |
/ |
YE4-112M-2 |
YE3-132S1-2 |
YE3-132S1-2 |
|
Fan Motor Power |
kW |
4 |
5.5 |
5.5 |
|
Fan Motor Rotational Speed |
r/min |
2880 |
2900 |
2900 |
|
Drum Motor Model Specification |
/ |
YE2-112M-4 |
YE2-132S-4 |
YE2-132S-4 |
|
Drum Motor Power |
kW |
4 |
5.5 |
5.5 |
|
Feeding Motor Model Specification |
/ |
/ |
/ |
/ |
|
Feeding Motor Power |
kW |
/ |
/ |
/ |
|
Cleaning Screen Type |
/ |
/ |
/ |
Mesh type |
|
Number of Cleaning Screen Layers |
layer |
/ |
/ |
1 |
|
Cleaning Screen Area |
m² |
/ |
/ |
5.3 |
|
Cleaning Screen Vibration Frequency |
Hz |
/ |
/ |
50 |
|
Cleaning Screen Amplitude |
mm |
/ |
/ |
9 |
|
Cleaning Drum Type |
/ |
Drum-driven type |
Drum-driven type |
Drum-driven type |
|
Number of Cleaning Drums |
pcs |
2 |
2 |
1 |
|
Cleaning Drum Diameter × Length |
mm |
1200×3100; 1600×2900 |
1200×3150; 1850×3000 |
1400×3150 |
|
Fan Model Specification |
/ |
4-72-4A |
4-72-4A |
4-72-4A |
|
Fan Quantity |
pcs |
1 |
1 |
1 |
|
Fan Impeller Diameter |
mm |
400 |
400 |
400 |
|
Gravity Separation Table Specification (L × W) |
mm |
/ |
/ |
/ |
|
Gravity Separation Table Frequency |
Hz |
/ |
/ |
/ |
|
Gravity Separation Table Amplitude |
mm |
/ |
/ |
/ |
Applications and Features
The grain cleaning machine is suitable for large-scale central grain reserves. It features high throughput, advanced eco-friendly dust collection equipment, and easy mobility. This versatile machine is primarily used for rice, corn, and wheat.
The machine utilizes negative pressure dust extraction to reduce wear on the fan impeller caused by impurities. It is a new type of cleaning screen that combines rolling and vibrating motions for high efficiency and environmental friendliness.
