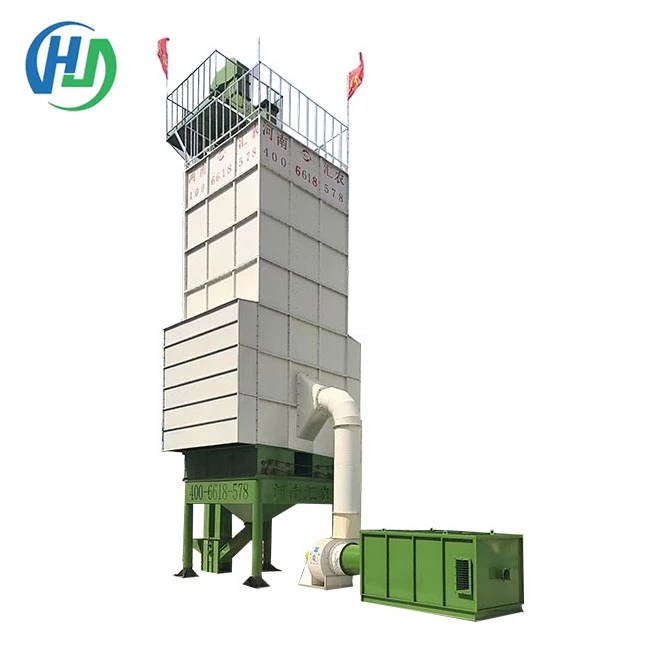

Henan Huinong Machinery Co., Ltd. is one of the most reliable manufacturers and suppliers of wheat dryer machine in China. With abundant experience, we warmly welcome you to buy durable wheat dryer machine at low price from our factory. Customized orders are welcome.
Product Specifications
|
Serial Number |
Project |
Unit |
Design Value |
|
1 |
Model Name |
/ |
5HX-32AGrain Drying Machine |
|
2 |
Structural Type (Continuous/Batch Cycle/Batch Static) |
/ |
Batch Cycle |
|
3 |
Drying method (direct heating/indirect heating) |
/ |
indirect heat |
|
4 |
Drying process (co flow/cross flow/mixed flow/counter flow) |
/ |
downstream |
|
5 |
Dimensions of the dryer body (length x width x height) |
mm |
3500×2500×11500 |
|
6 |
processing capacity |
t/d |
/ |
|
7 |
Precipitation amplitude,% |
/ |
/ |
|
8 |
Batch processing volume |
t |
32 |
|
9 |
Precipitation rate |
%/h |
≥0.5 |
|
10 |
Number of drying sections |
pcs |
1 |
|
11 |
Total height of the Su section |
pcs |
1 |
|
12 |
Total height of the drying section |
mm |
3600 |
|
13 |
Total height of the Su section |
mm |
4500 |
|
14 |
Cooling section height |
mm |
/ |
|
15 |
effective volume |
m³ |
58 |
|
16 |
Hot air temperature range |
℃ |
45~160 |
|
17 |
Number of hot air fans |
pcs |
2 |
|
18 |
Air supply type of hot air blower (positive pressure/negative pressure) |
/ |
negative pressure |
|
19 |
Model name of No.1 hot air blower |
/ |
4-72-6.8A centrifugal fan |
|
20 |
Motor power of No.1 hot air blower |
kw |
7.5 |
|
21 |
Model name of No.2 hot air blower |
/ |
4-72-6.8A centrifugal fan |
|
22 |
Motor power of No.2 hot air blower |
kw |
7.5 |
|
23 |
Motor power of No.3 hot air blower |
kw |
/ |
|
24 |
Number of cooling fans |
pcs |
/ |
|
25 |
Cooling fan model name |
/ |
/ |
|
26 |
Cooling fan motor power |
kw |
/ |
|
27 |
Total power of dryer motor |
kw |
19.4 |
|
28 |
Type of heat source (coal/oil/gas/electricity consumption) |
/ |
fuel |
|
29 |
Equipment model name providing heat source |
/ |
YL-60 Fully Automatic Combustion Machine |
|
30 |
Heat source thermal power (output heat) |
kcal/h |
600000 |
|
31 |
Improve equipment productivity |
t/h |
10~15 |
Product Features and Applications
The drying system employs a negative pressure air supply mode and is equipped with two 4-72-6.8A centrifugal fans. Each fan has a power rating of 7.5 kW, with a total motor power of 19.4 kW for the entire unit, ensuring a stable and uniform air supply.
The system utilizes oil-fired heating powered by a YL-60 fully automatic burner, delivering a thermal output of 600,000 kcal/h. It employs indirect heating to ensure clean drying, preventing grain contamination by flue gases, and making the drying process safe and environmentally friendly.
Suitable for drying grains
Rice, wheat, corn, soybeans, black rice, buckwheat, etc.
